Validation & Diagnostics

ProStream includes validation and diagnostics tools to catch scene issues before conversion and runtime.

ProStreamDiagnostics (Ad-hoc Diagnostics)

The diagnostics window provides on-demand checks outside the normal workflow.

It is implemented as an editor window that lets you:

• Select a diagnostic engine
• Optionally scope checks to a specific GameObject hierarchy (default scope is the scene hierarchy)
• Run a diagnostic pass
• Apply fixes for diagnostics that provide actionable suggestions

Opening Diagnostics

Keyboard Shortcut: Press Alt+Shift+D to open the diagnostics window.

Menu: Tools → instance.id → ProStream → Diagnostics Window

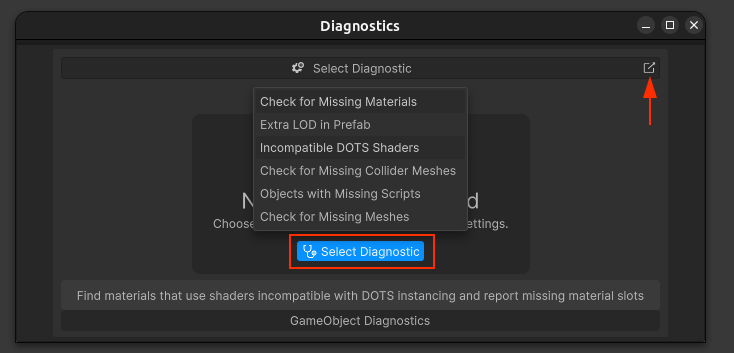

Diagnostic Tools

The available list depends on which DiagnosticEngine assets are discoverable in your project. The built-in diagnostics include:

• Check for Missing Meshes
• Check for Missing Materials
• Check for Missing Collider Meshes
• Objects with Missing Scripts
• Incompatible DOTS Shaders (only compiled when SRP + URP/HDRP symbols are enabled)
• Extra LOD in Prefab (informational/partial implementation)

Running Diagnostics

1. Open Diagnostics Window

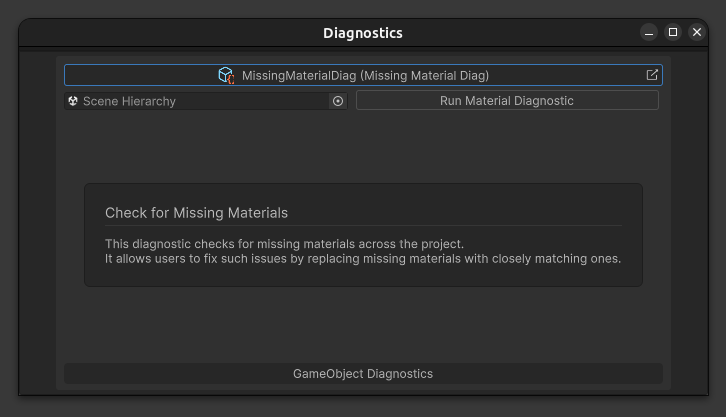

2. Select a diagnostic from the selector
3. Optionally set a target object/folder scope
4. Configure diagnostic-specific options (if available)
5. Click Run Diagnostic
6. Review the summary and results table in the same window

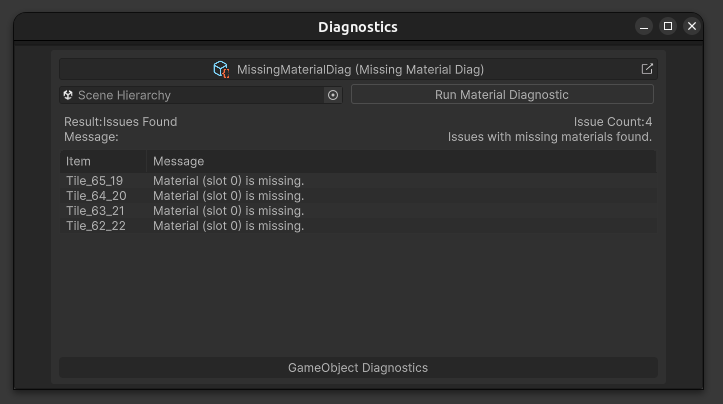

Diagnostic Results

Results are shown in two parts:

• Summary row
• Result: overall run state
• Issue Count: number of diagnostic items returned
• Message: high-level result text
• Results table
• Item: object/material being reported
• Message: per-item message
• Details: suggested replacement pairs or usage details when available

Overall result states come from DiagnosticResult.Result and commonly include:

• NoIssues: no matching problems found
• IssuesFound: one or more issues were detected
• Failure: diagnostic could not run as expected (for example, required project assets not found)
• InvalidType: unsupported target type was selected
• Complete: a fix operation finished

Per-item states in the table can be different from the overall state:

• Suggestion: issue with a suggested target/fix candidate
• Warning: issue found but no suggested replacement
• Success/Failure: individual fix attempt result

Run Fix is only shown when the diagnostic supplies suggestions and has a fix method wired.

Common Issues and Fixes

Missing Mesh References

Issue: MeshFilter has no mesh assigned

Fix:

1. Select the object in hierarchy
2. Assign a mesh in MeshFilter component
3. Or remove the MeshFilter if not needed

Notes:

• The diagnostic attempts exact-name mesh matching for suggestions.
• Run Fix applies suggested mesh assignments where available.

Null Materials

Issue: Renderer has null material slots

Fix:

1. Select the object
2. Assign materials to all slots in Renderer
3. Or remove unused material slots

Notes:

• Suggestions are based on exact name matching.
• Run Fix fills empty slots when a suggestion exists.

Missing Collider Meshes

Issue: MeshCollider has no shared mesh assigned

Fix:

1. Assign a suitable collider mesh manually
2. Or use Run Fix when a suggestion is available

Notes:

• The diagnostic searches for MeshCollider components with missing mesh references.
• Suggested replacements are generated from mesh matching logic.

Missing Scripts

Issue: GameObject has one or more missing script components

Fix:

1. Restore the missing script asset/reference
2. Or manually remove missing component slots

Notes:

• The current diagnostics UI typically does not show a fix action for this check.

Incompatible Shaders

Issue: Shader not compatible with DOTS/Entities

Fix:

1. Replace with DOTS-compatible shader
2. Use URP/HDRP Lit shader
3. Or create custom DOTS shader

Notes:

• This diagnostic has no automatic fix button.
• Advanced toggles may be available (for example V2 search and strict verification).

Extra LOD in Prefab

Issue: LODGroup setup may not align with prefab child hierarchy

Fix:

1. Review child object structure versus LOD levels
2. Remove extra children or adjust LODGroup levels as needed

Notes:

• This diagnostic is informational/partial and does not provide automatic fixes.

Additional Behavior Notes

• Include Disabled GameObjects is a window-level option in the header menu.

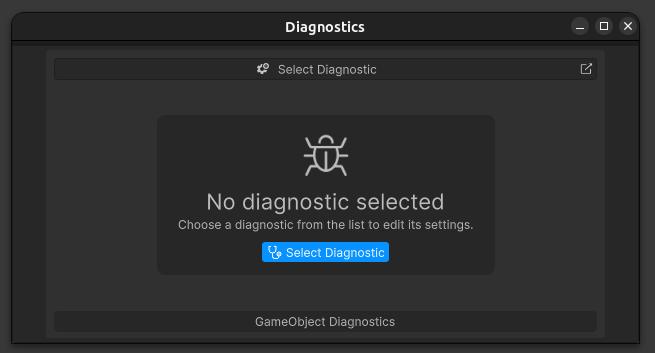

• If no diagnostic is selected, the window shows a placeholder with a Select Diagnostic action.
• Missing Scripts currently reports issues, but in the current editor flow it does not surface actionable suggestions, so a fix button is typically not shown.
